Calibration Test for 16-Channel Infrared Tire Temperature Sensor

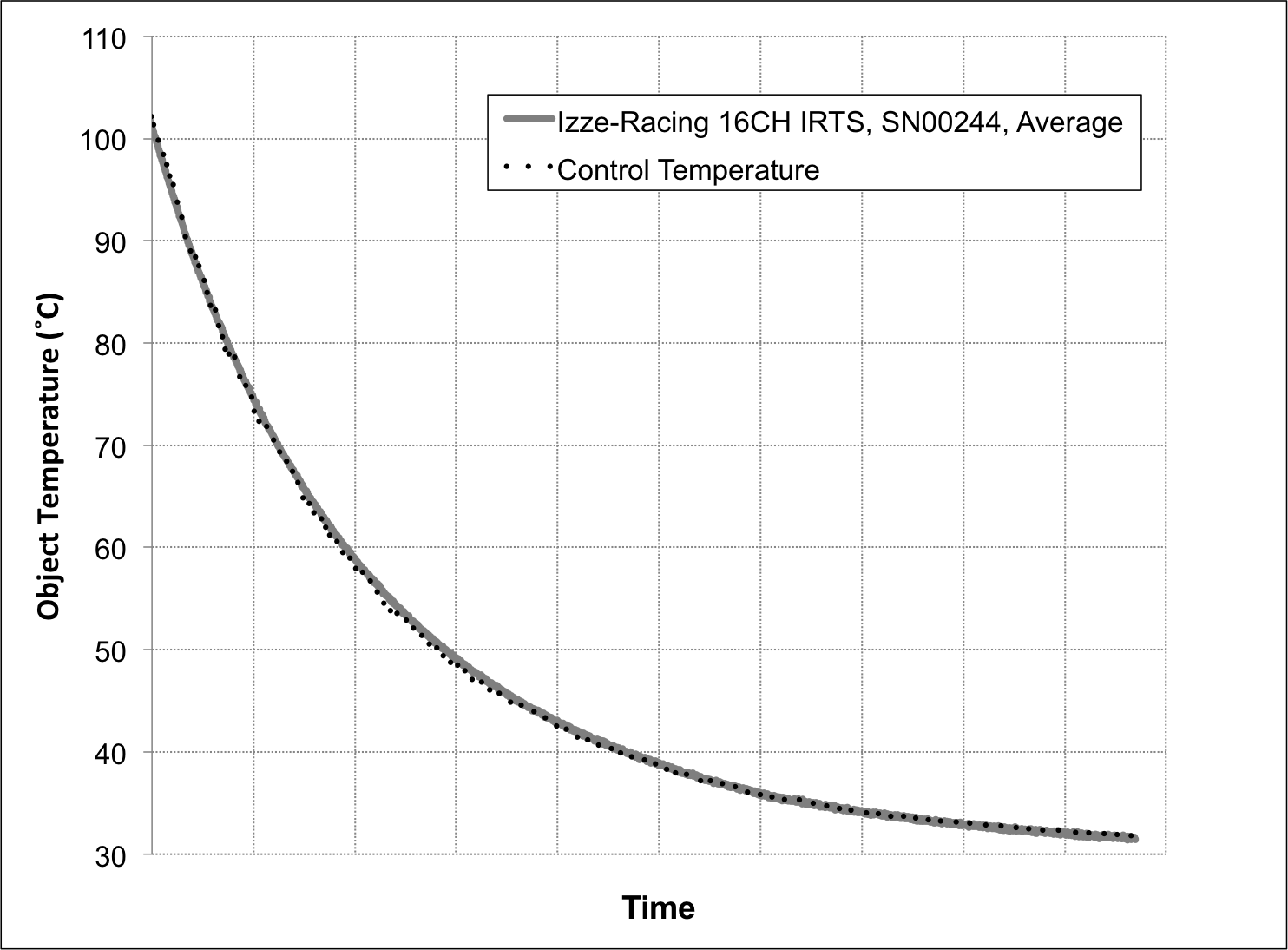

Random calibration test of one of our 16-Channel Infrared Tire Temperature Sensors (SN 00244). Test object is a tire with a uniform temperature & emissivity, subjected to a temperature sweep from 100 to 30˚C, and the control temperature is measured using an E-type thermocouple with a National Instruments high-accuracy thermocouple DAQ. Results are well within the limits of error.

Our lead engineer is actually a thermal engineer, having done many years of R&D work for the DoD using $200K+ IR cameras. Rest assured, we know what we're doing.
