Izze Racing Wireless Infrared Tire Temperature Sensor Replaceable Battery

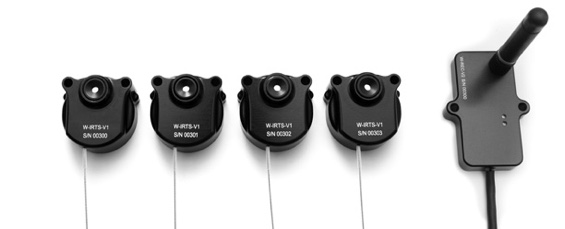

Izze Racing Wireless Infrared Tire Temperature Sensor Set

16 Temperature Channels per Sensor

The Izze-Racing Wireless Infrared Temperature Sensor (W-IRTS) consists of a small, lightweight infrared temperature sensor capable of measuring temperature at 16 laterally-spaced points with a wide 120˚ FOV, at a sampling frequency of 10Hz, object temperature between -20 to 300˚C, and enclosed in a compact IP66 rated aluminum enclosure – perfectly suited for tire temperature measurement. Each wireless receiver can handle up to four active sensors simultaneously and broadcasts all data via CAN.

Ultra-Wide (120˚) FOV

±1˚C Accuracy

Adjustable

Emissivity

Wireless Infrared Temperature Sensor

Datasheet and Ordering

Izze Racing Infrared Tire Temperature Sensor up to 16 Channels
Izze Racing Infrared Tire Temperature Sensor Fully Adjustable Emissivity
Izze Racing Infrared Tire Temperature Sensor 1-Degree Accuracy

Replaceable Battery

CAN Templates & CAD Model

Made in the USA

Izze Racing Made in USA
Izze Racing Infrared Temperature Sensor Datasheet

Overlay of Tire Temperature and Pressure at VIR

Simplified Setup

AiM CAN

Template:

DBC CAN

Template:

Datasheet

CAD Model:

White Paper: Influence of Temperature on Tire Grip

Izze Racing White Paper on Influence of Temperature on Tire Grip

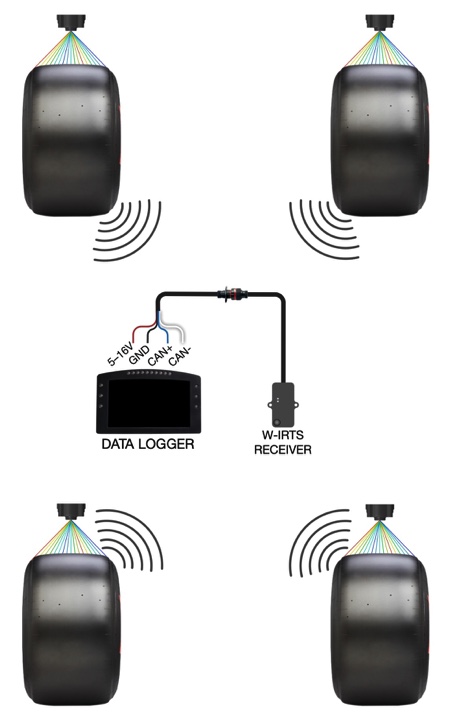

Izze-Racing Wireless Infrared Tire Temperature Sensor System Layout

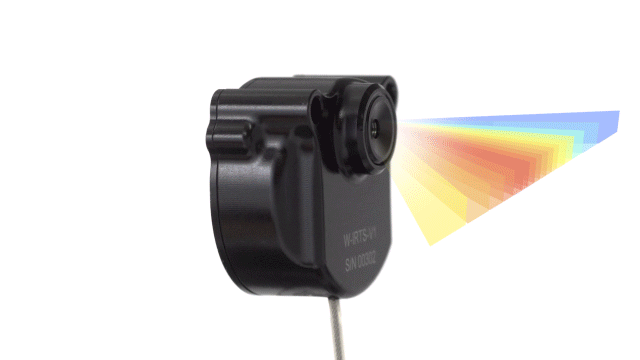

Izze Racing Wireless Infrared Tire Temperature Sensor Field of View

Ultra Lightweight

Tire Temperature and Pressure Monitoring System (TPMS) with Ultra Lightweight Sensor
Izze-Racing Wireless Infrared Tire Temperature Sensor 3D Model
Izze-Racing Wireless Infrared Tire Temperature Sensor Banner
