The Izze-Racing 8-Channel Aero Pressure Scanner (8PA-V1) measures pressure with 8 dedicated 24-bit pressure transducers, and an isolated 24-bit pressure reference input for low-noise, high-precision differential pressure measurements. Pressure scanners are essential for aerodynamic tuning, development, and CFD verification.

This sensor is capable of measuring pressure from 10 to 1300 mbar with a precision of 0.01mbar and RMS noise as low as 0.02 mbar. Data is broadcasted via CAN with an output rate of up to 250Hz and packaged in a small IP67 aluminum enclosure.

x8 24-bit Pressure Channels

0.01mBar Resolution

Seamless Integration into CAN-Capable Data Acquisition Systems

Aero Pressure Scanner

Datasheet and Ordering

Update Rate up to 250Hz

Izze Racing Aero Pressure Scanner Datasheet

DATASHEET

Made in the USA

Izze Racing Made in USA

REQUEST QUOTE

DBC CAN

Template:

Izze Racing Aero Pressure Scanner with up to 250Hz Update Rate

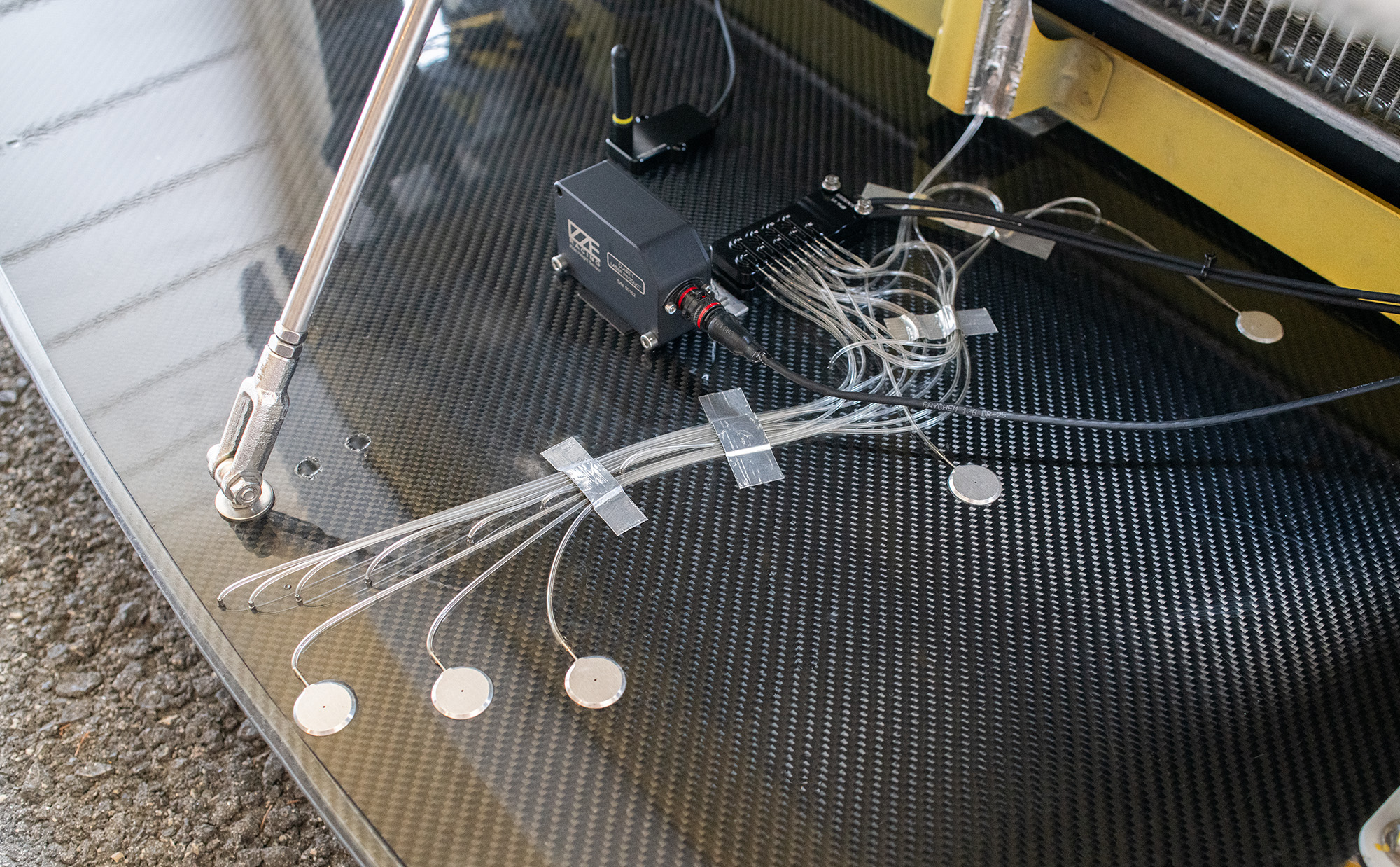

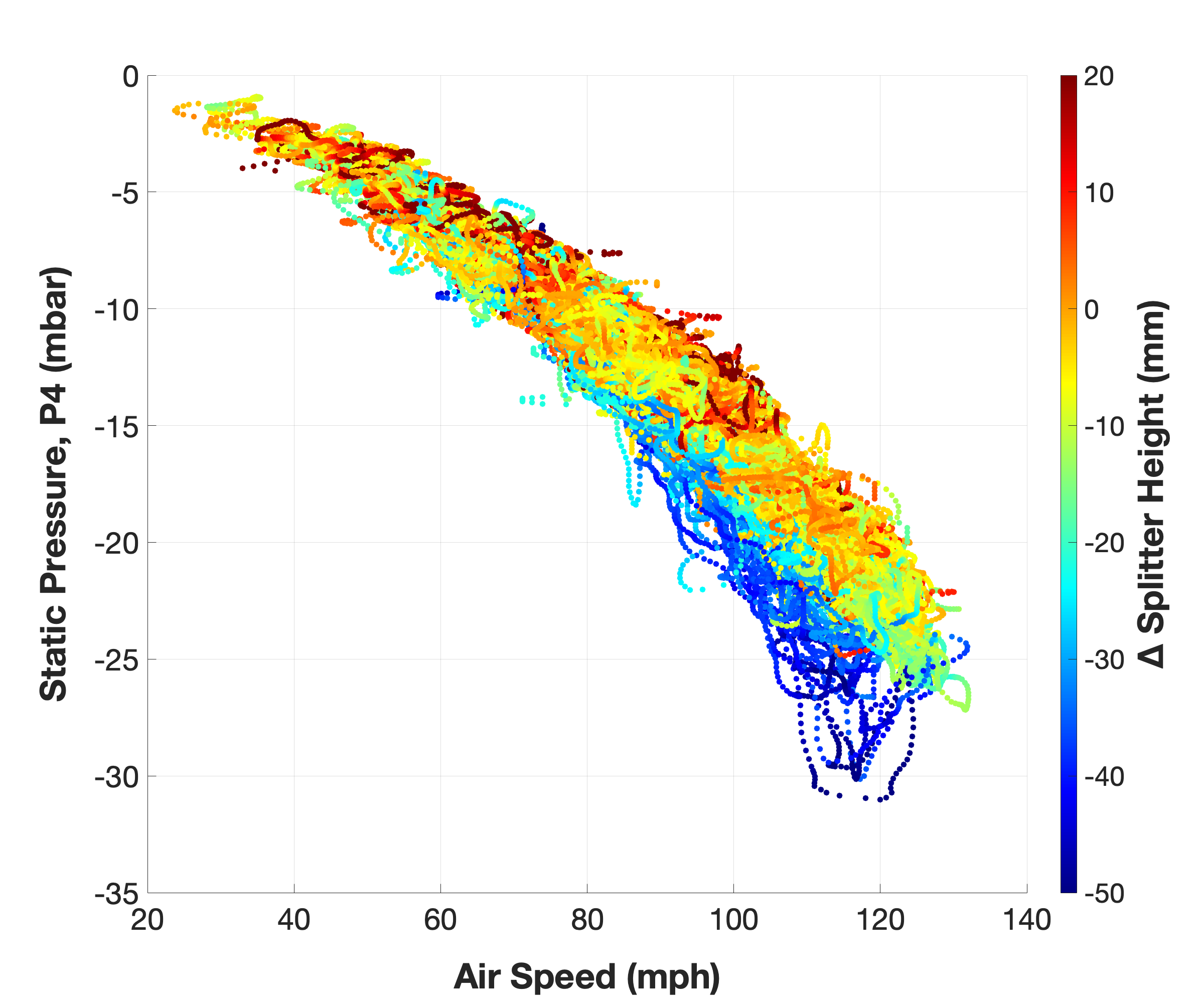

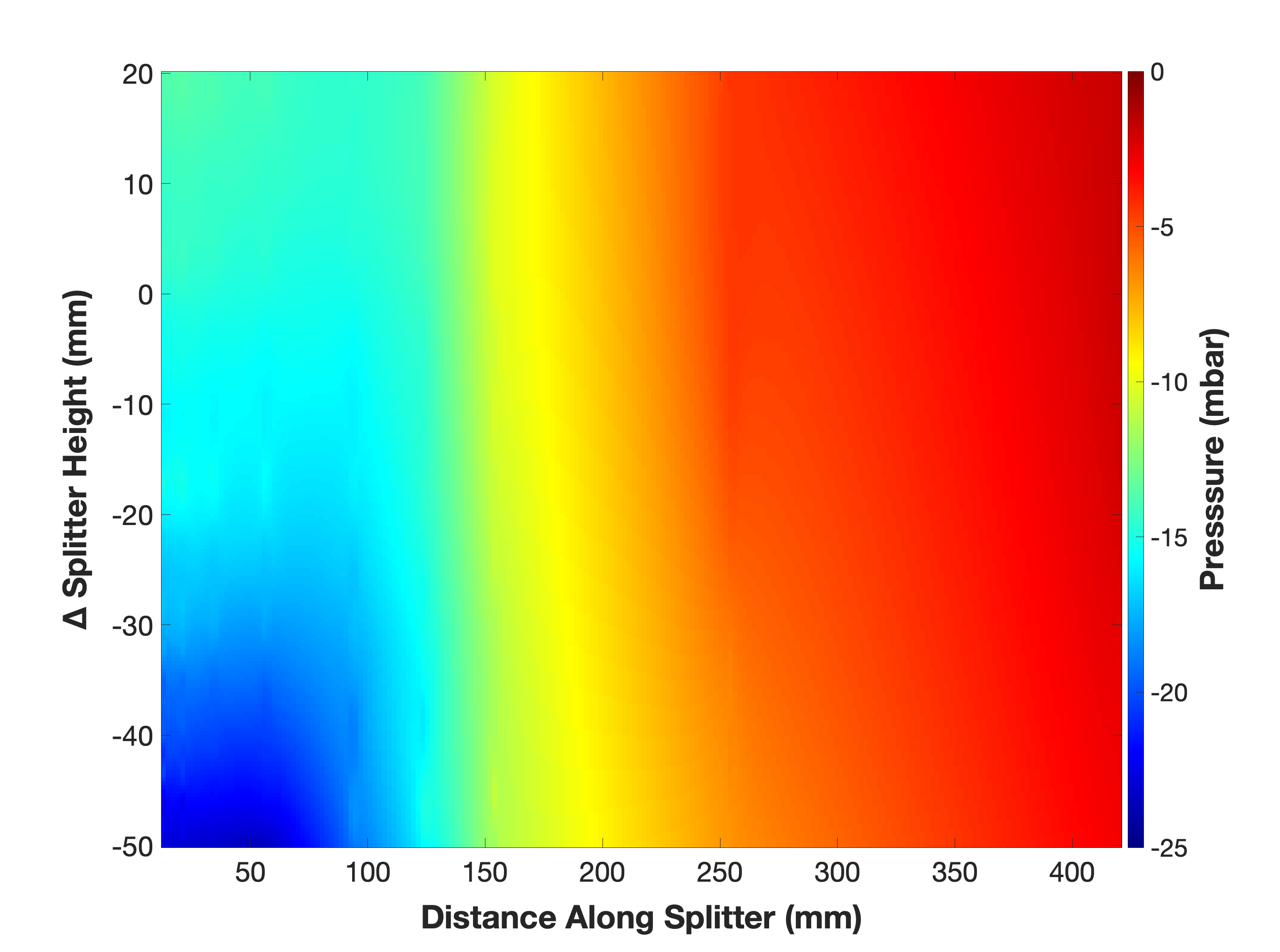

Overlay of Splitter Downforce and Pressure Distribution

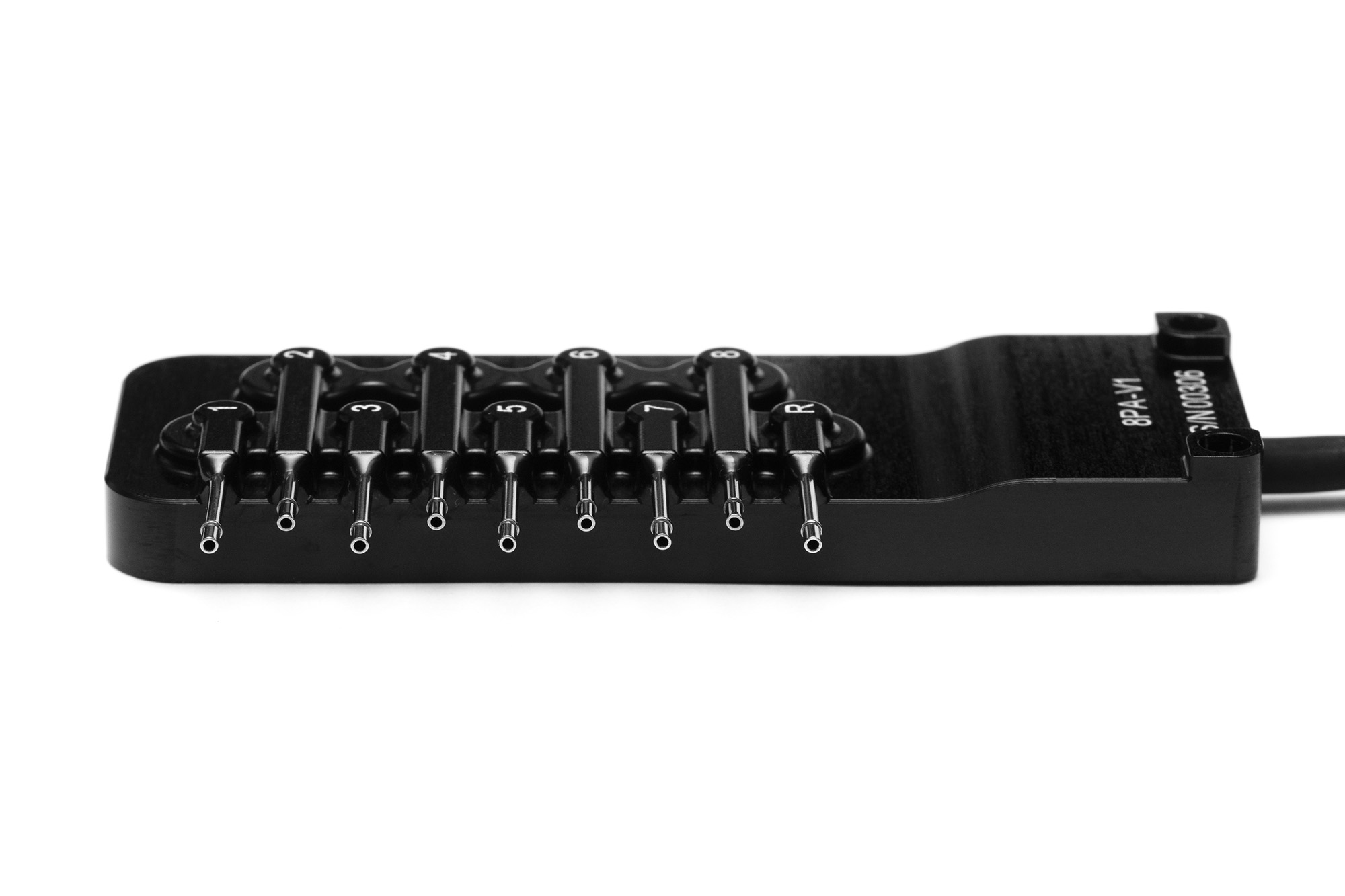

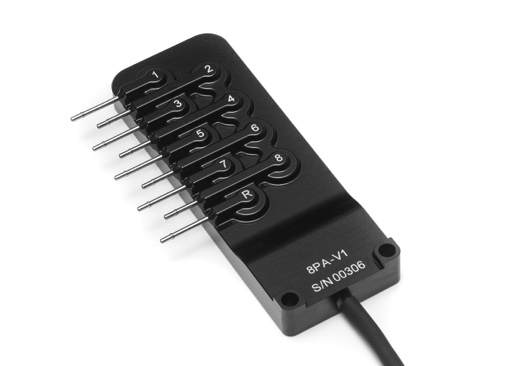

Izze Racing 8-Channel Aero Pressure Scanner
Izze Racing Aero Pressure Scanner with 8 Channels
Izze Racing Aero Pressure Scanner with Resolution of 1 Pascal
