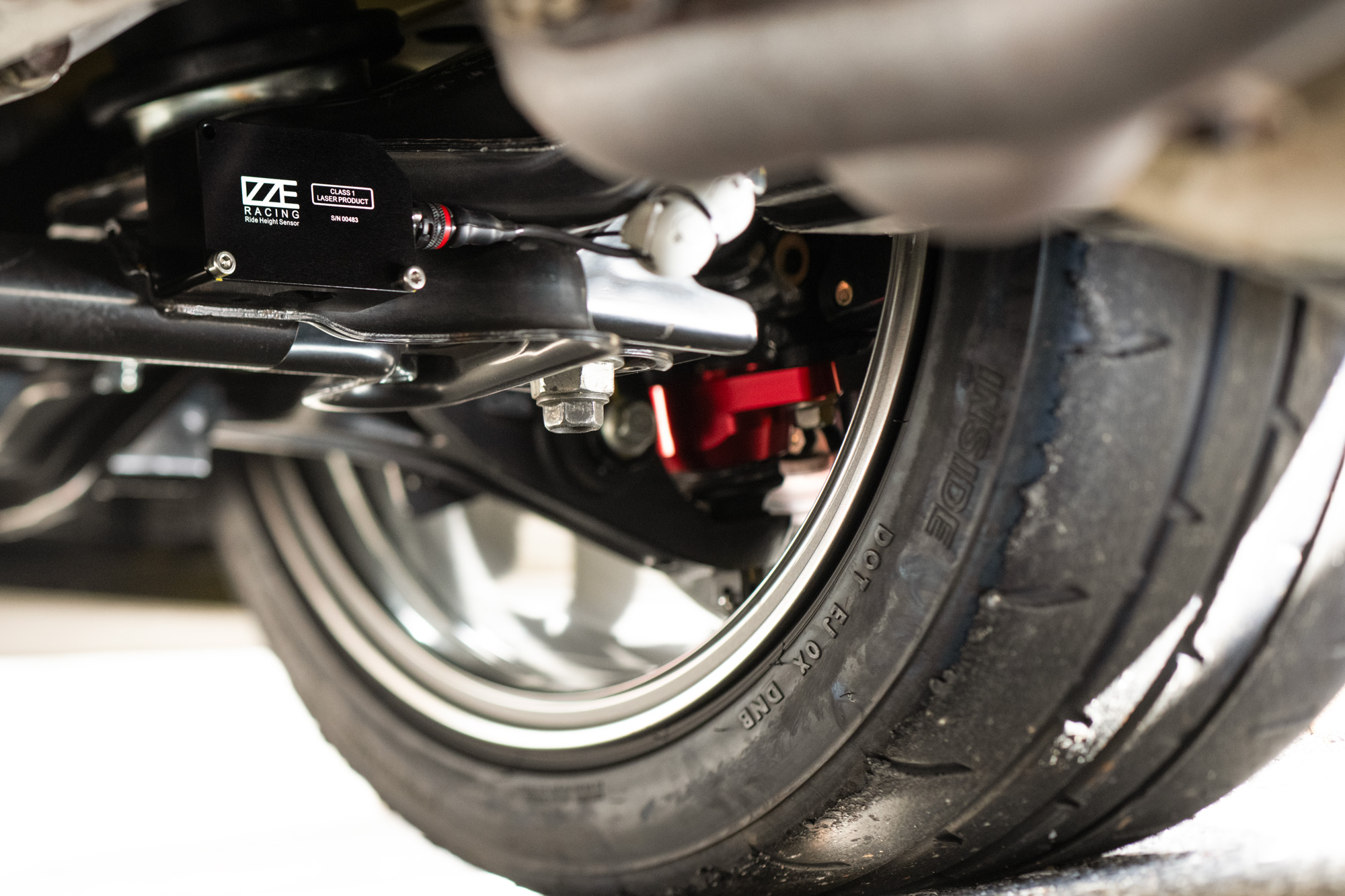

The Izze-Racing laser ride height sensor is designed to measure ride height with micron-level resolution and sub-millisecond response using contactless laser triangulation. These sensors are essential for aerodynamic research, development, and tuning, but are also used for suspension tuning, skid wear, chassis stiffness analysis, tire deflection, and other contactless measurements.

The sensor is capable of measuring ride heights from 30 to 300mm with micron-level resolution, outputting data at 770Hz using CAN 2.0A protocol, and enclosed in a compact IP66 rated aluminum enclosure with a Deutsch autosport connector.

Micron-Level Resolution

Data transmitted via CAN 2.0A

Seamless Integration into CAN-Capable Data Acquisition Systems

Laser Ride Height Sensor

Datasheet and Ordering

Izze Racing Infrared Tire Temperature Sensor CAN Protocol

Update Rate of 770Hz

Izze Racing Infrared Temperature Sensor Datasheet

DATASHEET

Made in the USA

Izze Racing Made in USA

REQUEST QUOTE

MoTeC CAN

Configuration:

AiM CAN

Configuration:

DBC CAN

Template:

Izze Racing Laser Ride Height Sensor with 770Hz Update Rate
Izze Racing Laser Ride Height Sensor Banner
Izze Racing Laser Ride Height Sensor Micro-Level Resolution

Overlay of Ride Height at VIR
