Up to 32Hz Sampling Frequency

Up to 16 Temperature Channels per Sensor

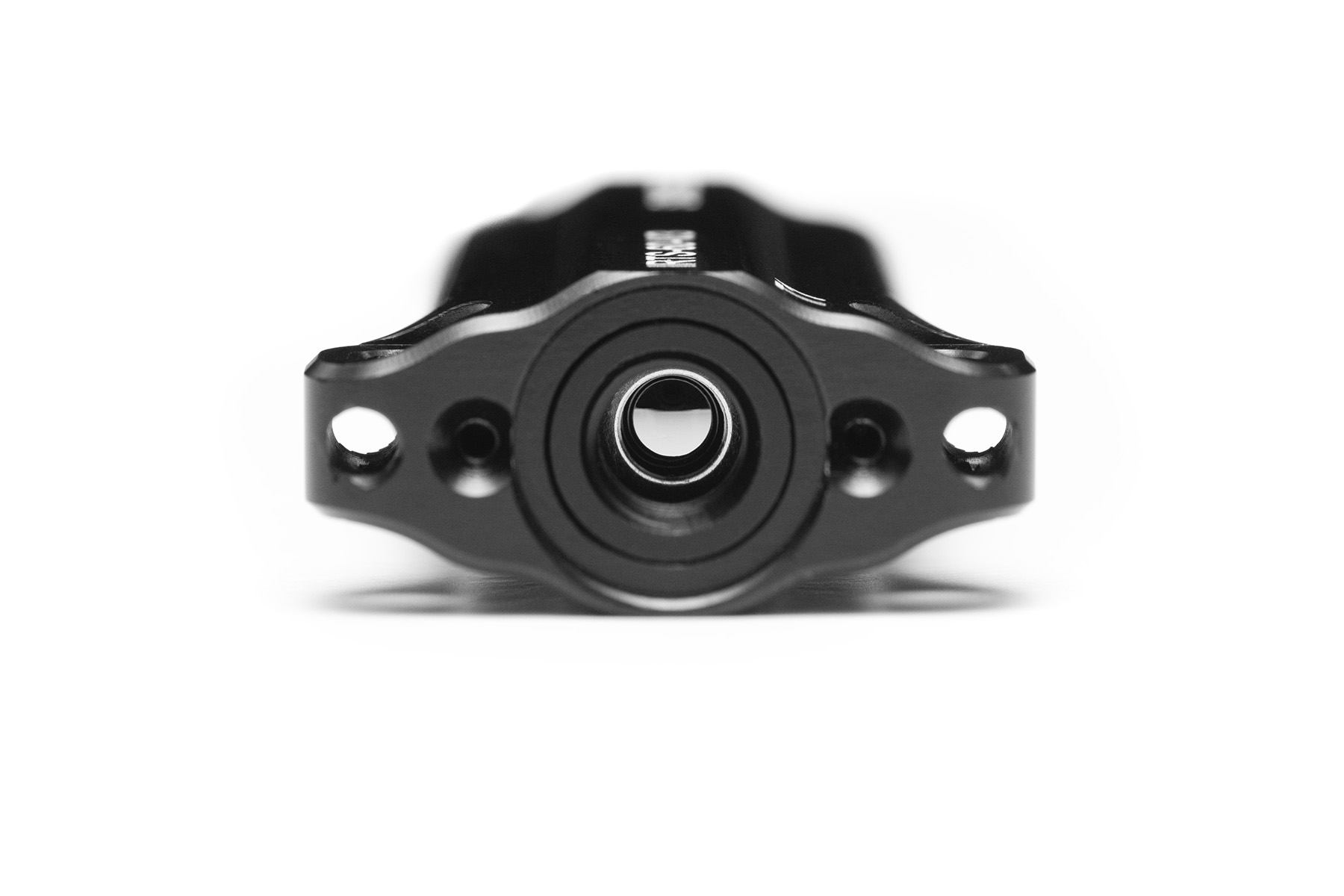

The Izze-Racing Multichannel Brake Infrared Temperature Sensor is specifically designed to measure the highly transient surface temperature of a brake rotor at multiple points, making it possible to acquire the time-based temperature distribution across a rotor's surface in order to evaluate & optimize the pad pressure distribution, cooling efficiency, braking efficiency, and hot spot formation from thermoelastic instabilities.

The sensor is capable of measuring temperature at 16, 8, 4 or 1 point(s), at a sampling frequency of up to 32Hz, object temperature between -20 to 950˚C, using CAN 2.0A protocol, enclosed in a compact IP66 rated aluminum enclosure, and priced to be affordable to all tiers of motorsport.

Wide 60 Degree FOV

Measure Temperatures up to 950˚C

Number of Channels
Frequency (Default = 32Hz)
Emissivity (Default = 0.55)
CAN ID: (Default = 0x4C4)

Fully Adjustable

Emissivity

Seamless Integration into CAN-Capable Data Acquisition Systems

Note: The base CAN ID for each sensor should be separated by increments of five or more

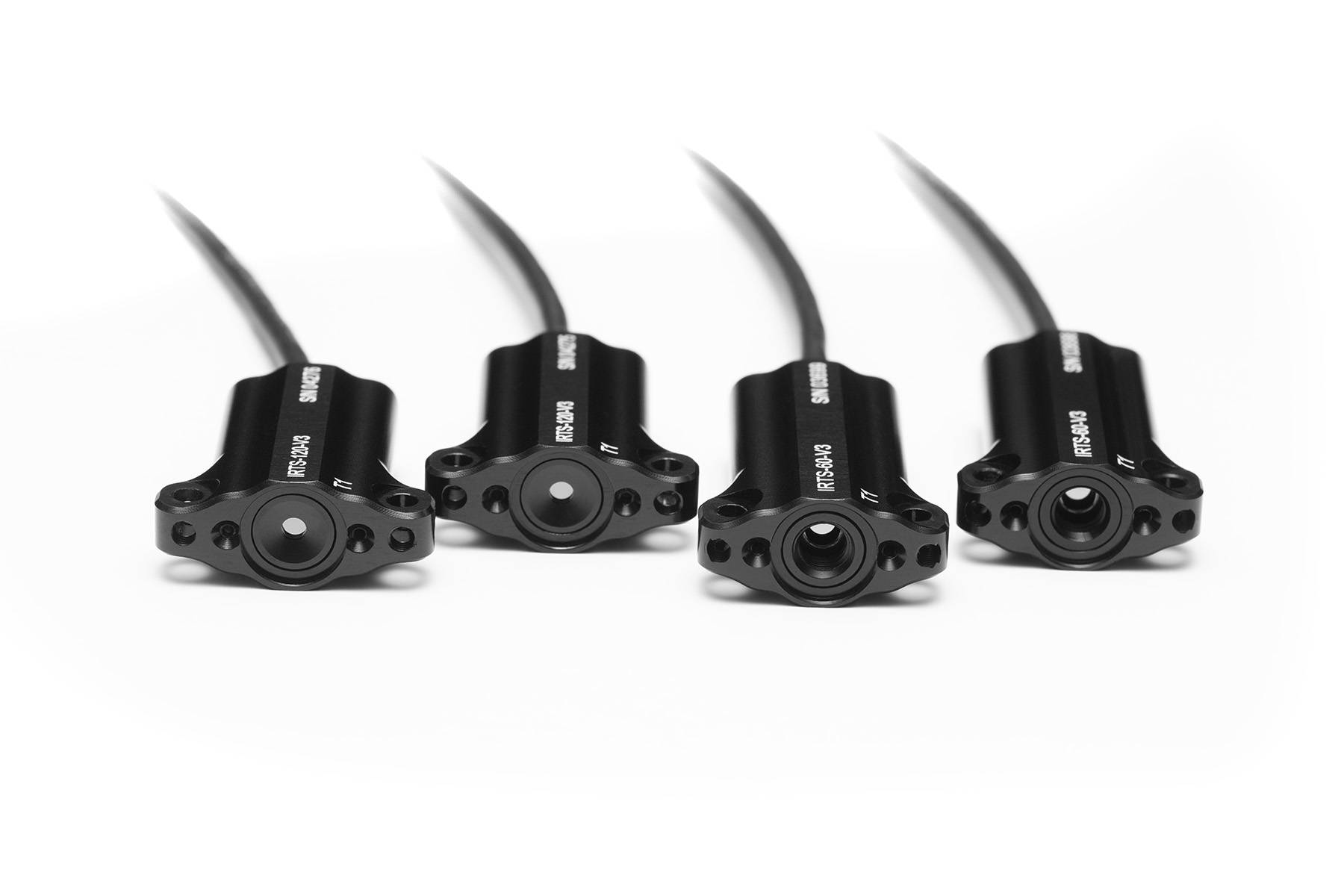

Multichannel Brake Infrared Temperature Sensors

Designed, Machined, and Assembled in the USA

Izze Racing Made in USA

Datasheet and Ordering

FSAE

Discounts for FSAE teams, contact us for details

Datasheet

Izze Racing Infrared Temperature Sensor Datasheet
Izze Racing Infrared Tire Temperature Sensor up to 32Hz Sampling Rate
Izze Racing Infrared Tire Temperature Sensor up to 16 Channels
Izze Racing Infrared Tire Temperature Sensor Fully Adjustable Emissivity
Izze Racing Infrared Tire Temperature Sensor Wide 60-Degree FOV
Izze Racing Infrared Tire Temperature Sensor Adjustable CAN ID

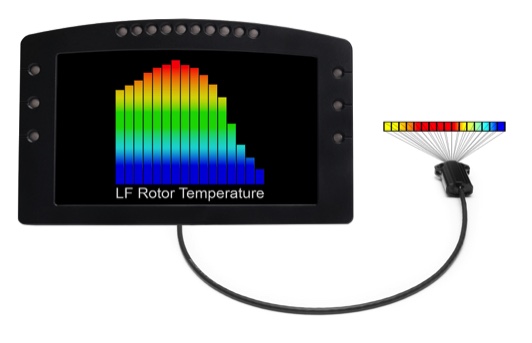

Izze Racing Infrared Brake Temperature Sensor with MoTeC Datalogger

Return Policy & Warranty

All infrared temperature sensors come with a 30-Day return policy and have a 1-year warranty from manufacturing defects. If there is ever an issue, please contact us; customer satisfaction & support is paramount to us.

Fully Adjustable

CAN ID

Overlay of Front Brake Rotor Temperature Distribution at VIR

MoTeC CAN

Configurations:

16-Channel

8-Channel

4-Channel

1-Channel

AiM CAN

Configurations:

16-Channel

8-Channel

4-Channel

1-Channel

Contact us to request an invoice
