Up to 32Hz Sampling Frequency

Up to 16 Temperature Channels per Sensor

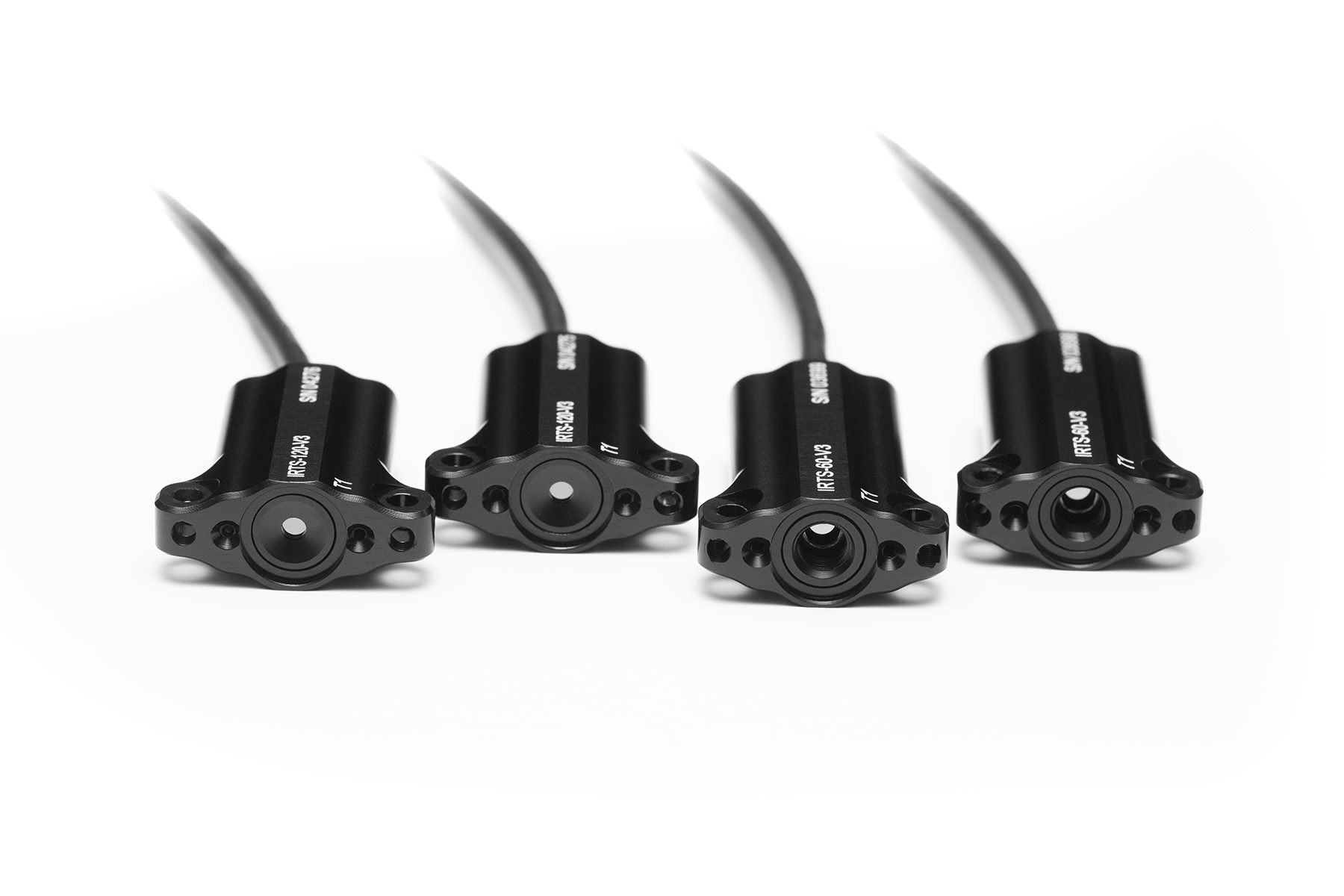

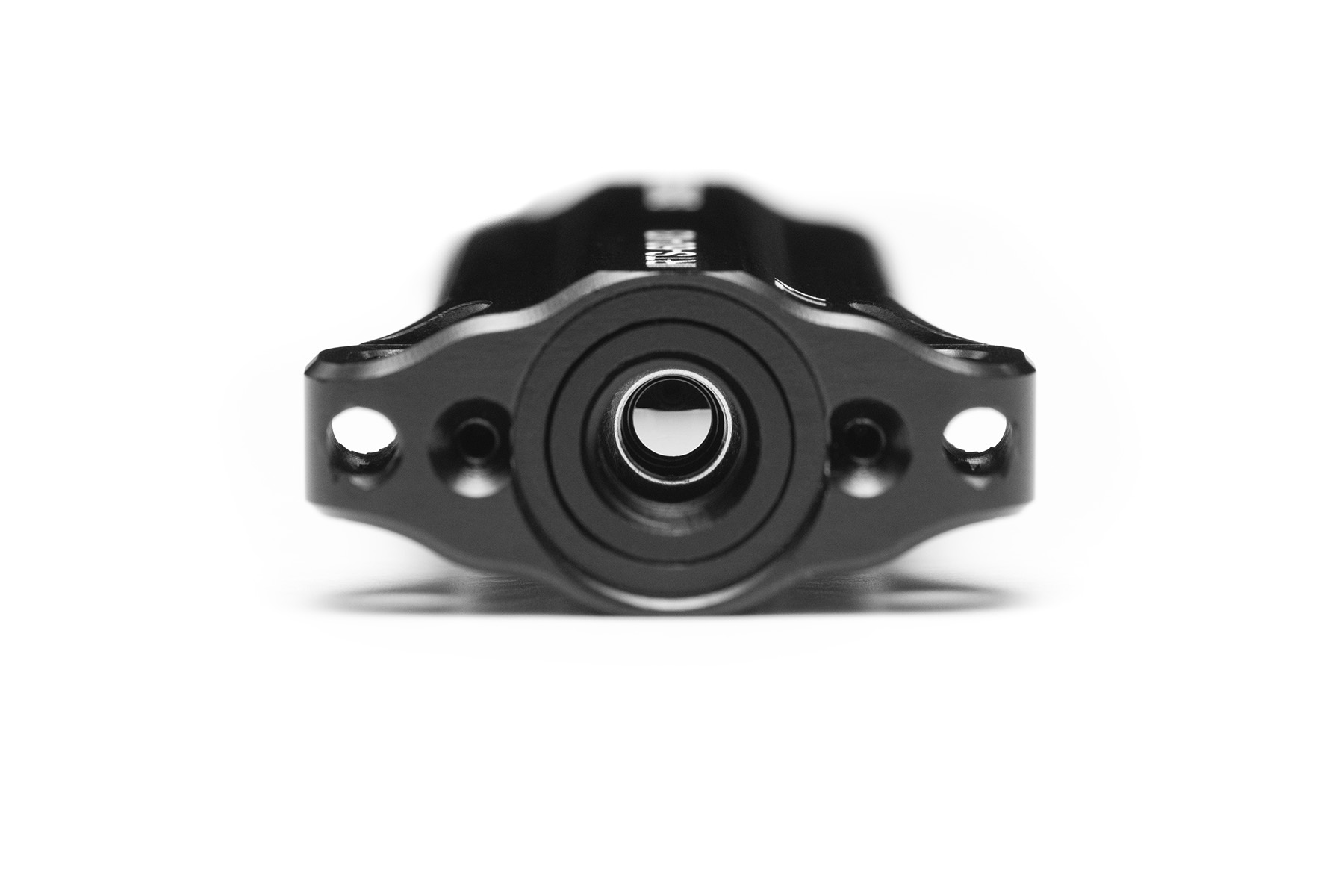

The Izze-Racing infrared sensor is specifically designed to measure the highly transient surface temperature of a tire with spatial fidelity, providing invaluable information for chassis tuning, tire exploitation, and driver development.

The sensor is capable of measuring temperature at 16, 8, or 4 laterally-spaced points, at a sampling frequency of up to 32Hz, object temperature between -20 to 300˚C, using CAN 2.0A protocol, enclosed in a compact IP66 rated aluminum enclosure, and priced to be affordable to all tiers of motorsport. The sensor is now offered with an optional ultra-wide (120˚) field-of-view to ease installation in closed-wheeled vehicles with tight packaging constraints.


The sensors may be purchased individually or as a complete kit with a motorsport-grade wiring harness. A specific version of the sensor is also available for MoTeC Hundred Series ECU's (see below for more details).

Wide (60˚) & Ultra-Wide (120˚) FOV

±1˚C Accuracy

Number of Channels
Frequency (Default = 16Hz)
Field-of-View (FOV)
Emissivity (Default = 0.85)
CAN ID: (Default = 0x4B0)

Fully Adjustable

Emissivity

Seamless Integration into CAN-Capable Data Acquisition Systems

Tire Infrared Temperature Sensors

Designed, Machined, and Assembled in the USA

Izze Racing Made in USA

Datasheet and Ordering

FSAE

Discounts for FSAE teams, contact us for details

Datasheet

Izze Racing Infrared Temperature Sensor Datasheet
Izze Racing Infrared Tire Temperature Sensor up to 32Hz Sampling Rate
Izze Racing Infrared Tire Temperature Sensor up to 16 Channels
Izze Racing Infrared Tire Temperature Sensor Fully Adjustable Emissivity
Izze Racing Infrared Tire Temperature Sensor 1-Degree Accuracy
Izze Racing Infrared Tire Temperature Sensor Wide 60-Degree and Ultra-Wide 120-Degree FOV
Izze Racing Infrared Tire Temperature Sensor Adjustable CAN ID

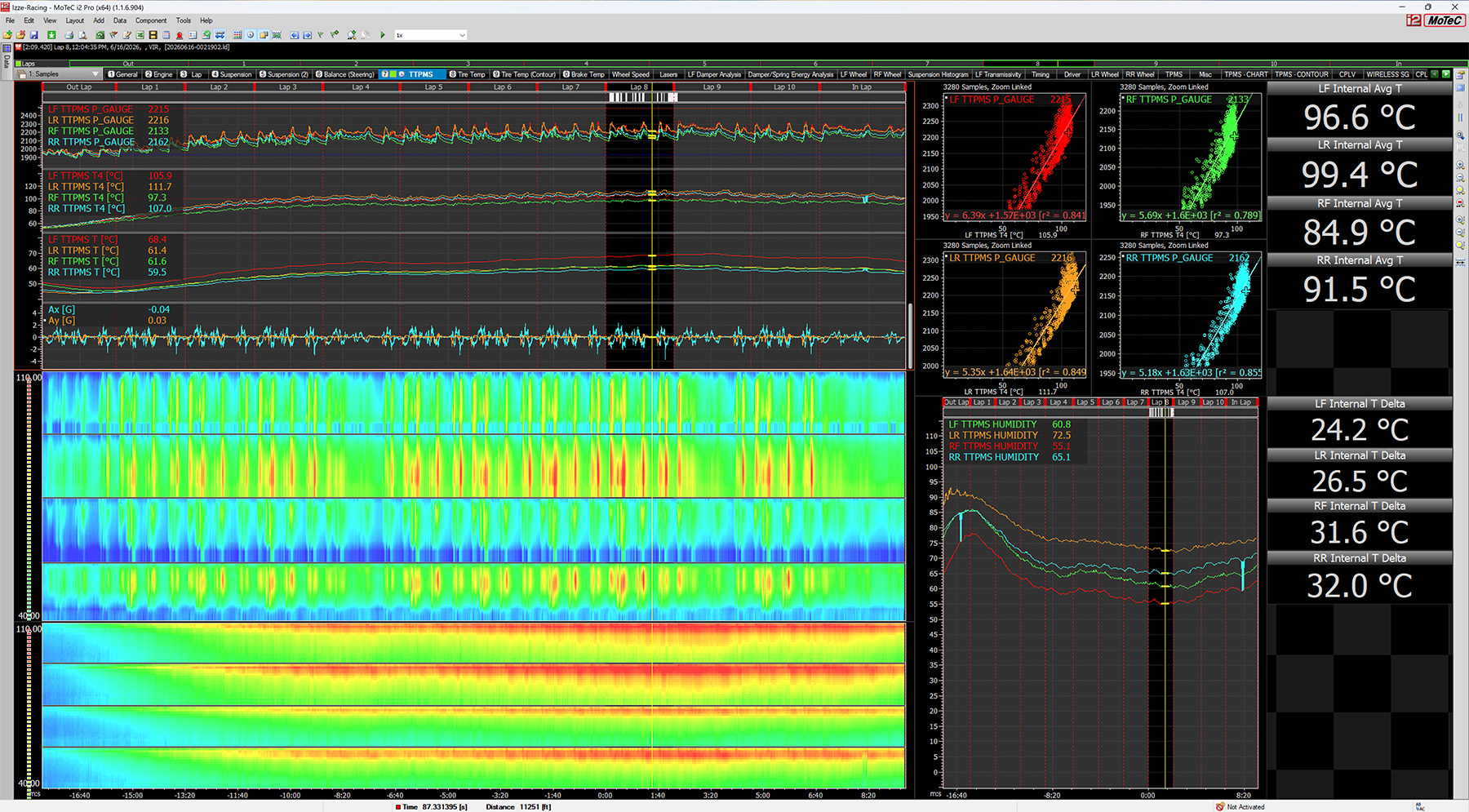

Izze Racing Infrared Tire Temperature Sensor with MoTeC Datalogger

Return Policy & Warranty

All infrared temperature sensors come with a 30-Day return policy and have a 1-year warranty from manufacturing defects. If there is ever an issue, please contact us; customer satisfaction & support is paramount to us.

Fully Adjustable

CAN ID

Contact us to request an invoice

Video of Real-Time Tire Surface Temperature at VIR

Sensor for MoTeC Hundred Series ECU's

PCB ASSEMBLY

NOW AVAILABLE

Izze Racing Infrared Tire Temperature Sensor PCB Verison

Note: The base CAN ID for each sensor should be separated by increments of four or more

MoTeC CAN

Configurations:

16-Channel

8-Channel

4-Channel

Tire Temperature Sensor Kit

Number of Channels per Sensor
Field-of-View (FOV)

16-Channel

8-Channel

4-Channel

AiM CAN

Configurations:

Datasheet

Izze Racing Infrared Temperature Sensor Datasheet

Note: Hundred Series ECU's can only receive up to 12 temperature channels from the sensors. For a setup with two sensors (e.g., drag applications), each sensor can be configured to output 3 or 6 channels. For a setup with four sensors (e.g., circuit applications), each sensor can only be configured to output 3 channels.

Number of Channels
Izze Racing Infrared Tire Temperature Sensor for MoTeC M880 M800 M600 M400
Izze Racing Tyre Tire Temperature Sensor Kit

Note: Kit includes four 4, 8, or 16-channel IR Tire Temperature Sensors with a motorsport-grade wiring harness. See page 5 of the datasheet for more details regarding the wiring harness. Every kit is built-to-order and will ship in 5–10 business days. Please contact us if you would like to modify the kit; we are glad to accommodate your specific requirements.

Kit Datasheet

Izze Racing Infrared Temperature Sensor Datasheet
